Molasses / Massecuite Mixer MBA
The BMA massecuite mixer permits optimum mixing of heated molasses and cooled massecuite. The maximum quantity of heated molasses to be added is 10 % on massecuite. Reducing the crystal content and raising the product temperature diminishes the viscosity of the massecuite, subject to requirements, by up to 1/5 of the original figure. In addition, the molasses serves as a lubricant.
The BMA massecuite mixer produces easy-to-centrifuge massecuite and replaces other re-heating equipment of the Green-Smith type which quite often operated inefficiently and at rather high costs.

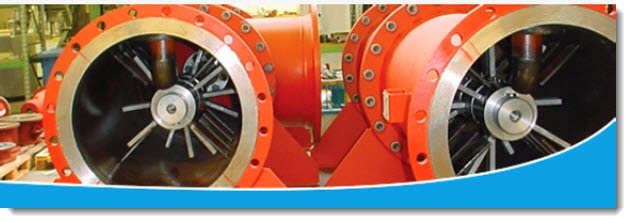

The mixer consists of a tube with flanges at inlet and outlet. Inside the tube is a stirrer with special blades welded to the shaft. The stirrer is driven by an AC gear motor. For molasses feed, the tube has a 1“ nozzle.
The massecuite mixer is installed vertically or horizontally ˝in line˝ between the final cooling crystallizer and the centrifugal station, and can also be used to add intermediate molasses.
Materials
Stirrer:
stainless steel
Mixing tube:
mild steel, stainless steel optionally available
Seal:
DN 200 / DN 250: stuffing box; mechanical seal optional; DN 350 / DN 500: mechanical seal
Features and advantages
Due to the high massecuite viscosity, molasses and massecuite do not mix easily; however, studies revealed that the BMA molasses/massecuite mixer provides excellent mixing efficiency.
Diameter of mixing tube
DN 200
DN 250
DN 350
DN 500
The mixer consists of a tube with flanges at inlet and outlet. Inside the tube is a stirrer with special blades welded to the shaft. The stirrer is driven by an AC gear motor. For molasses feed, the tube has a 1“ nozzle.
The massecuite mixer is installed vertically or horizontally ˝in line˝ between the final cooling crystallizer and the centrifugal station, and can also be used to add intermediate molasses.
Materials
Stirrer:
stainless steel
Mixing tube:
mild steel, stainless steel optionally available
Seal:
DN 200 / DN 250: stuffing box; mechanical seal optional; DN 350 / DN 500: mechanical seal
Features and advantages
Due to the high massecuite viscosity, molasses and massecuite do not mix easily; however, studies revealed that the BMA molasses/massecuite mixer provides excellent mixing efficiency.
- higher sugar yield and higher dry substances as the massecuite can be cooled to a lower temperature
- better centrifugation
- viscosity of the massecuite can be adjusted by setting the temperature and the quantity of recirculated molasses
- small mass increase
- flexible in-line installation
- horizontal or vertical installation
- small floor space required
- low maintenance requirements
- low capital cost compared to other systems.
Diameter of mixing tube
DN 200
DN 250
DN 350
DN 500
Braunschweigische
Maschinenbauanstalt AG
Postfach 32 25
D-38022 Braunschweig
Germany
Phone +49 5 31∙ 8 04-0
Fax +49 5 31∙ 8 04-216
www.bma-de.com
sales@bma-de.com
